US Shift Quick 4 Gen2 Stand-Alone Transmission Control System
Featuring REVolution Architecture
Currently supporting these popular transmissions:
- GM 4L60E, 4L65E, and 4L70E (2008 and earlier only)
- GM 4L80E and 4L85E
- Ford AOD-E, 4R70W (wide ratio AOD-E), and 4R75
- Ford E4OD and 4R100

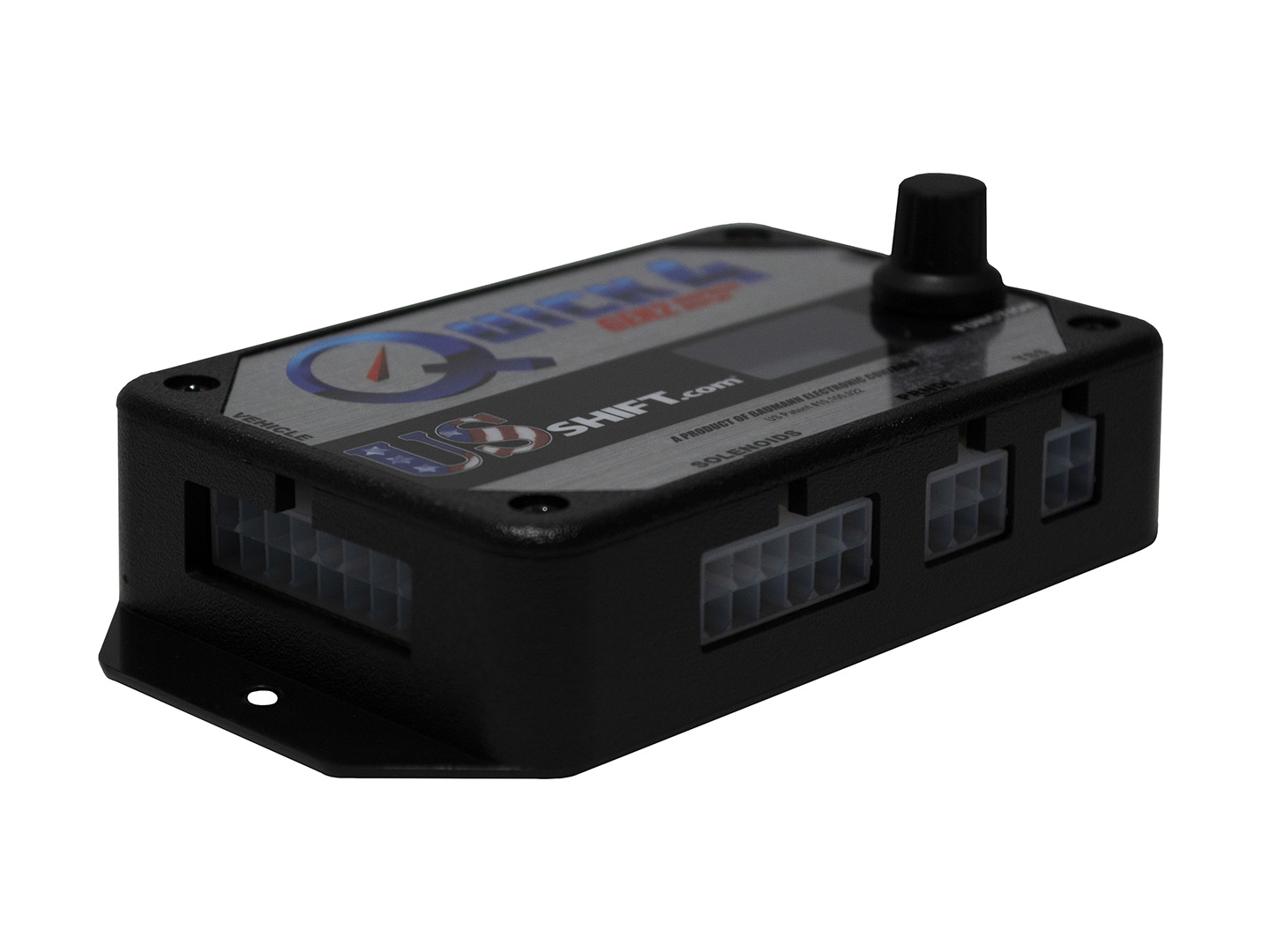

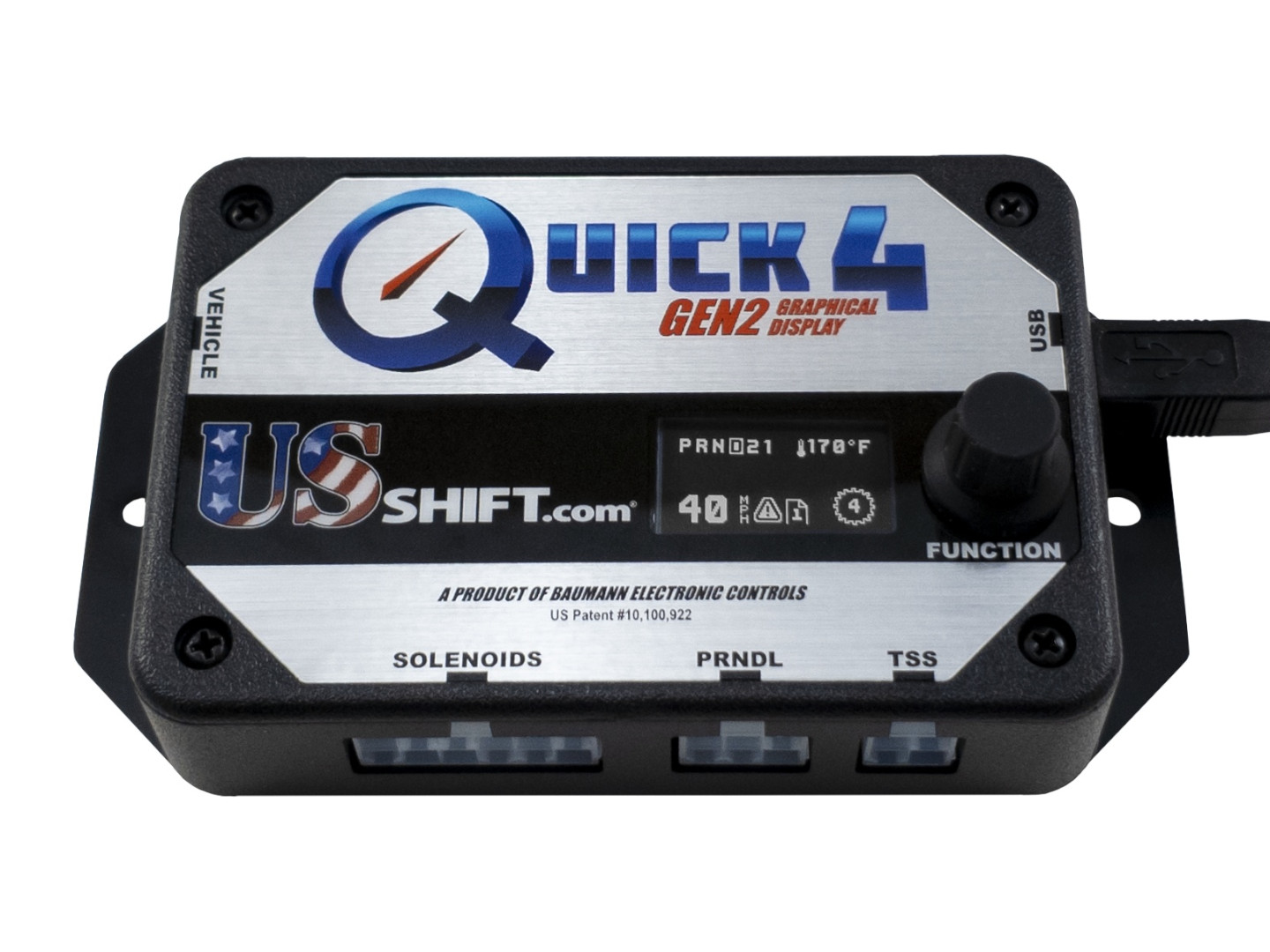

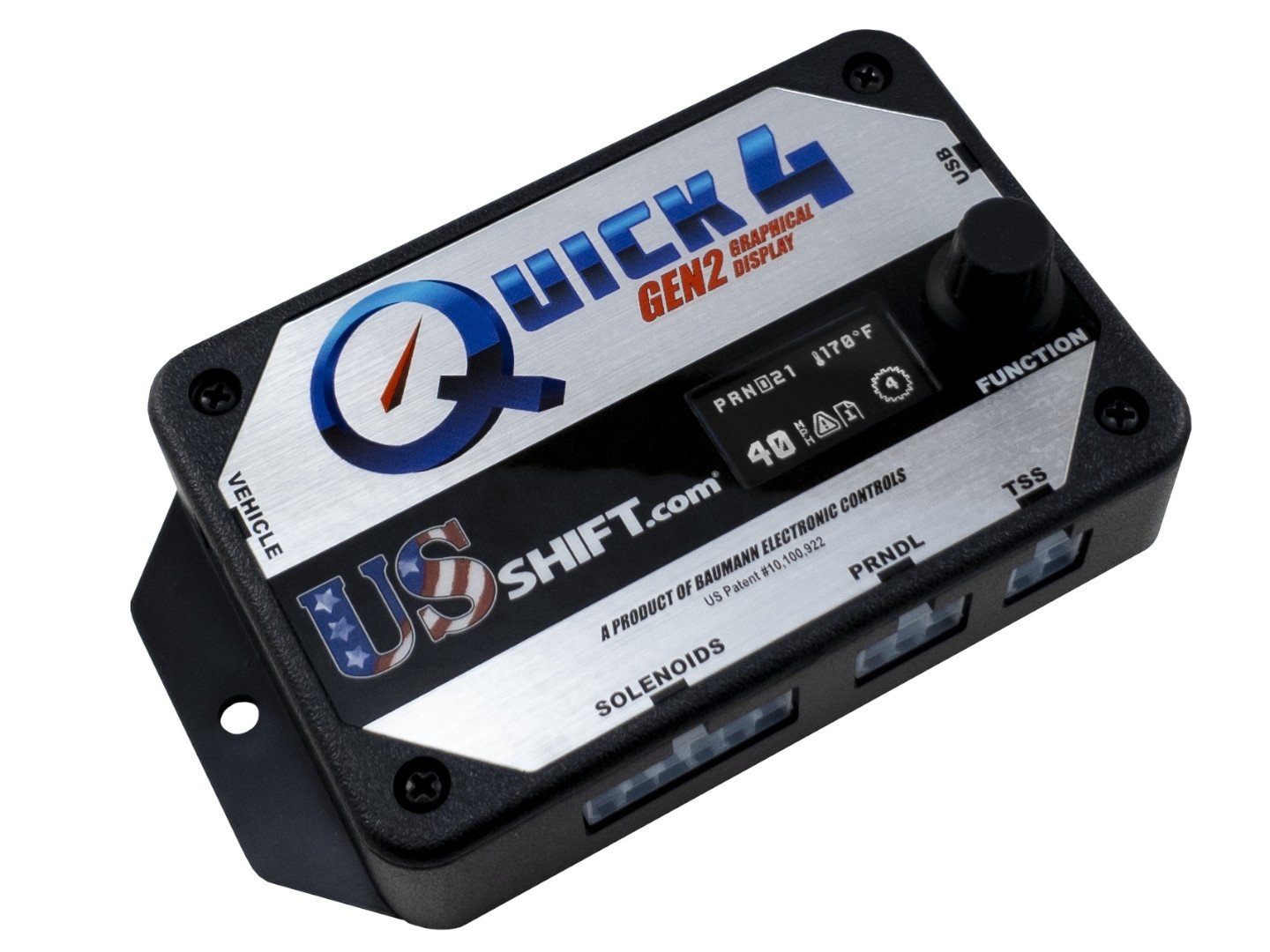

The Quick 4 is a powerful, fully-featured, and easy-to-use transmission controller based on REVolution architecture. It enables the use of modern, electronic four-speed transmissions on a wide variety of vehicles that lack the OEM capability, such as classic cars, trucks, or motorhomes. It can also be used to enhance a modern vehicle's performance by taking over control from the OEM computer, allowing the user to directly adjust shift points, firmness, torque convter engangement, and much more.
- Graphical user interface enables easy adjustment to most settings without the need to connect a PC
- Redisigned PCB from the ground up
- Simplified setup allows you to install and drive immediately
- Shift quality improvements result in consistent, excellent, OEM-quality shift feel
- Compatible with aftermarket torque converters.
Gen2: A New Shift in Design
Introducing the all-new Gen2 Quick 4 transmission controller from US Shift. When we set out to redesign the Quick lineup, we didn't just want to give it a simple iterative refresh. We went back to the drawing board for a complete overhaul and the resulting new design has improved each controller's functionality, ease of use, power efficiency, diagnostic abilities, and more.

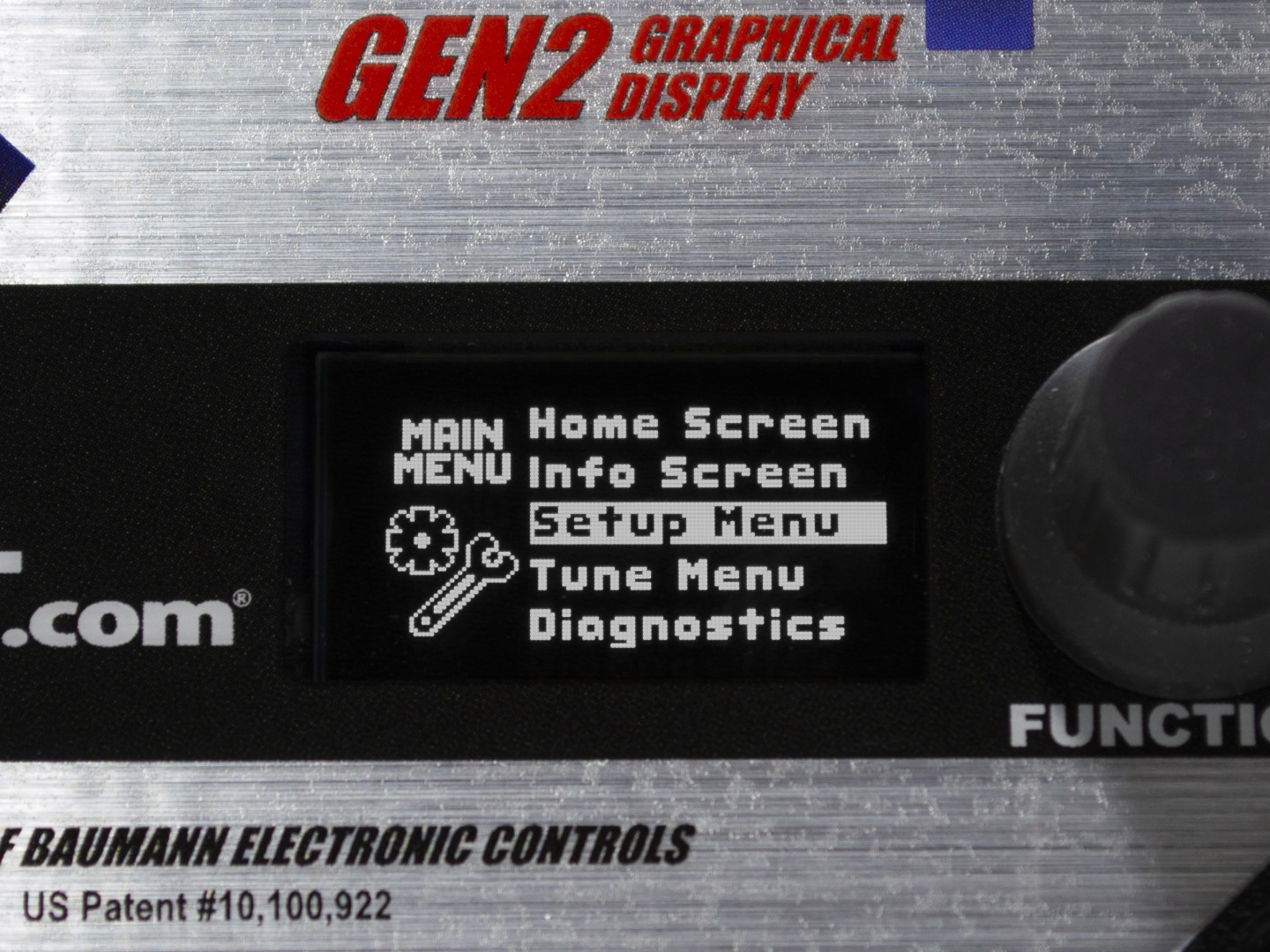

The new feature that stands out the most on the Gen2 is our new OLED user interface display. It lights up bright enough to be seen in daylight and retains excellent contrast. The OLED display also features a wide viewing angle, making it ideal for mounting below or to the side of the driver position without suffering wash-out. It has a much wider temperature range than standard LCD displays, meaning it will continue to function whether you're over-landing in the sweltering heat of Moab or the frigid tundras of Alaska.
Using the Gen2's new UI is a breeze. The home screen gives you real-time info on things like PRNDL position, currently-commanded gear, speed, configuration table in use, and any fault codes that may appear. To access the main menu, simply turn the knob and it will immediately appear. All of the menus and functions have been carefully crafted to be easily understood and adjusted. Most of the adjustments that can be made using a computer with our Shiftware software can also be done from the built-in user interface. Examples include adjusting shift timing, shift firmness, torque converter clutch engagement, switching calibration tables, and adjusting the speed sensor settings, just to name a few.
The Gen2 features comprehensive diagnostic tools. Each individual solenoid output is precisely monitored and error messages are more specific, taking you directly to the problem. And advanced diagnostics data can be accessed directly through the UI's menu instead of having to connect the controller to a PC. These improvements makes installation and troubleshooting easier than ever before.
The newly redesigned Gen2 controllers feature a new circuit board which is more power efficient and runs cooler thanks to advanced thermal management, improving reliability. Additional protection circuitry prevents controller damage which could be caused by accidental mis-wiring. We've also added a robust, high-temperature-rated EEPROM IC with error correction for storing critical data - such as tunes, settings, and learned data - which has been rated to maintain data integrity for at least 200 years. Firmware is stored in newly-enhanced flash memory with error correction code technology. And, as with our past controllers, constant power is not needed to maintain saved data, meaning power loss doesn't erase your settings and your battery won't be drained during long periods of storage.
Further PCB Improvements Include...
- Elimination of configuration jumpers. Now, functions that previously required a jumper change are changed automatically in software for easy setup.
- New outputs have been added which can be customized by the end user.
- Elimination of the external capacitor needed for the speedometer signal output.
- Improved engine RPM signal input which improves compatibility with different engine RPM signals, such as direct ignition coil connections in HEI, TFI, and breaker point ignition systems.
The Gen2 Quick4 retains all of the features that the previous generation included, such as...
- Advanced algorithms provide the highest level of shift control and synchronization, allowing you to maximize the performance of your combination.
- The most advanced torque converter clutch control available, with several actions available during shifts.
- Accushift ™ learning capability for the most accurate WOT shift points possible.
- Full line pressure control for each individual shift, providing superior shift quality.
- Adjustable throttle lift delay, overdrive shift delay, and ballistic throttle effect.
- Burnout mode prevents upshifts while "pedaling" the throttle.
- Up to 4 pre-loaded shift calibrations able to be selected on the fly.
- FLEX-SHIFT ™ Shifter re-mapping capability.
- Metric Support.
- Transmission slip detection.
- 100Hz high-resolution data logging of all vital parameters and viewable in a graphic interface.
- Dedicated 4wd options and features.
- Compact size gives you the freedom to install in tight areas (4.165 x 2.8 x 1.1 inches)
- And many more cutting-edge features seen here.
Transmission Controller Feature Comparison
|Product||Quick2||Quick4||Quick6 / Quick6 Pro|
|Supported Transmissions||4L60E, 4L65E, 4L70E, 4L80E, 4L85E, 4R70W, 4R75E, E4OD, 4R100||6R80
(more to come)
|Calibration Tables (Tunes)||1||4||4|
|Manutronic Push-Button / Paddle /
|Ratio-Corrected Speedo Signal Output|
|TCC Control||Basic Cruise-Mode Operation||Full-Range Control with WOT Capability & Programmable Shift Action|
|Performance Ballistic Shift Control & Throttle Release Delay|
|Top Gear Delay|
|Input Shaft Speed Sensor (where available)|
|Engine RPM Input (more accurate shift points & slip detection|
|OFF-RODE TCC Control (enhanced performance & engine braking in manual ranges)|
|Burnout / Drag Race Mode|
|4x4-LO Transfer Case Ratio Compensation||Manual (using controller display)||Automatic or Manual|
|Multiple Low-Range Capability
(for crawler box)
|Adjustable Overheat Alarm|
|Reverse Throttle Position Sensor Capability|
|100Hz Data Logging (with graphical viewer)|
|Optional CAN Bus Data Interface||Coming Soon||Coming Soon|
|Integrated Trans-Brake||Quick6 Pro Only|
US Shift Transmission Control System protected by US Patent #10,100,922.
More transmission support will be available in the near future. If you'd like to be alerted to new products and updates, subscribe to our newsletter.
$140 - $160
Choose your transmission below to begin the kit builder wizard, which will help you choose the correct kit to purchase for your vehicle.
GM 4L60E / 4L65E
GM 4L80E / 4L85E
Ford 4R70W / AOD-E
Ford E4OD / 4R100
If you'd rather order by phone or email, feel free to contact us.
Quick 4 Installation Manuals
We believe that the more you know about US Shift products, the more you will like them, so we encourage you to download and inspect our manuals and tuning software before you buy our products. Feel free to contact us with any questions you may have.
Ford 4R70W Quick 4 Installation Manual
This manual describes the installation, tuning, and operation of the Quick 4 for Ford AOD-E, 4R70W, and 4R75 transmissions.
Ford E4OD Quick 4 Installation Manual
This manual describes the installation, tuning, and operation of the Quick 4 for Ford E4OD and 4R100 transmissions.
GM 4L80E Quick 4 Installation Manual
This manual describes the installation, tuning, and operation of the Quick 4 for GM 4L80E and 4L85E transmissions.
GM 4L60E Quick 4 Installation Manual
This manual describes the installation, tuning, and operation of the Quick 4 for GM 4L60E, 4L65E, and 4L70E transmissions.
